产品名称： T 磁芯 磁环(T9*5*3,T10*6*5,T16*12*8,T18*10*7,T22*14*8,T25*15*12,T31*19*13,T38*22*13等)
|
产品列表
 LED照明电源磁
电磁炉 电锅炉
无线充电器磁片
RM型 功率磁芯
POT,C型 功率磁
EE、EEL、EF型
ER,EC,ETD型 功
EEM,ER,EQ 功率
EFD型 功率磁芯
EI型 功率磁芯
EP型 功率磁芯
EPC型 功率磁芯
ET型 功率磁芯
FT型 功率磁芯
罐形磁心 GU型
LP型 功率磁芯
PQ型 功率磁芯
T 磁芯 磁环(T
UU,UF型 高导功
|
|
|

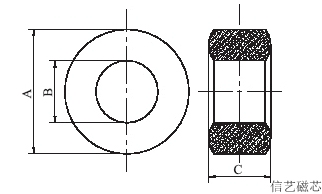

| 产品介绍：
|
型号 |
A |
B |
C |
R5K |
R7K |
R10K |
|
T4*2*2 |
3.5±0.3 |
1.78±0.3 |
1.78±0.3 |
1060min |
1630 |
1610 |
|
T6*3*2 |
6.0±0.3 |
3.0±0.3 |
2.0±0.3 |
1400 |
1600min |
1950 |
|
T6*3*3 |
6.0±0.3 |
3.0±0.3 |
3.0±0.3 |
1600min |
2800 |
3200 |
|
T6*3*4 |
6.0±0.3 |
3.0±0.3 |
4.0±0.3 |
2775 |
3800 |
4260 |
|
T7*4*2 |
7.0±0.3 |
4.0±0.3 |
2.0±0.3 |
1260 |
1570 |
1550 |
|
T7*4*4 |
7.0±0.3 |
4.0±0.3 |
4.0±0.3 |
2200 |
3000 |
4370 |
|
T7*4.3*2.2 |
7.0±0.4 |
4.3±0.4 |
2.2±0.3 |
1050 |
1450 |
1500 |
|
T8*4*3 |
8.0±0.3 |
4.0±0.3 |
3.0±0.3 |
1690min |
2800 |
2900 |
|
T8*4*4 |
8.0±0.3 |
4.0±0.3 |
4.0±0.3 |
2130min |
3700 |
3800 |
|
T8*5*3 |
8.0±0.3 |
5.0±0.3 |
3.0±0.3 |
1200min |
1900 |
1950 |
|
T9*5*3 |
9.0±0.3 |
4.7min |
3.0±0.3 |
1192min |
2500min |
3760 |
|
T9*5*4 |
9.0±0.3 |
4.7min |
4.0±0.25 |
1828min |
1800min |
3660 |
|
T9*5*5 |
9.0±0.3 |
4.7min |
5.0±0.3 |
2285min |
4050 |
4200 |
|
T9*5*7 |
9.0±0.25 |
5.0±0.25 |
7.0±0.18 |
4150 |
5650 |
5850 |
|
T10*5*3 |
9.52±0.25 |
4.75±0.13 |
3.17±0.25 |
2150 |
2900 |
3000 |
|
T10*5*4 |
10.0±0.38 |
5.0±0.38 |
4.0±0.13 |
2750 |
3750 |
3850 |
|
T10*5*5 |
10.0±0.4 |
5.0±0.4 |
5.0±0.3 |
3450 |
4700 |
4900 |
|
T10*5*6.5 |
9.53±0.2 |
4.75±0.3 |
6.35±0.3 |
4450 |
6050 |
6300 |
|
T10*6*3 |
10.0±0.3 |
6.0±0.3 |
3.0±0.3 |
1500 |
2050 |
2150 |
|
T10*6*4 |
10.0±0.4 |
6.0±0.4 |
4.0±0.3 |
1600min |
2000min |
3200 |
|
T10*6*5 |
10.0±0.4 |
6.0±0.4 |
5.0±0.3 |
2000min |
3000min |
4000 |
|
T10*6*6 |
10.0±0.4 |
6.0±0.4 |
6.0±0.3 |
3050 |
4150 |
4300 |
|
T11*7*3 |
10.99±0.25 |
6.83±0.25 |
2.97±0.25 |
1400 |
1900 |
1950 |
|
T11*7*7 |
11.12±0.25 |
7.11±0.25 |
7.09±0.25 |
3100 |
4250 |
4400 |
|
T12*6*4 |
12.0±0.4 |
6.0±0.4 |
4.0±0.3 |
2700 |
3200min |
4300 |
|
T12.7*7.92*7 |
12.7±0.4 |
7.92±0.3 |
7.0±0.3 |
3250 |
4450 |
4650 |
|
T12.7*8*4 |
12.7±0.3 |
8.3±0.3 |
3.5±0.2 |
1830 |
2500 |
2600 |
|
T12.7*8*5 |
12.7±0.3 |
8.3±0.3 |
4.6±0.2 |
2350 |
3200 |
3300 |
|
T14*7*5 |
14.0±0.5 |
7.0±0.5 |
5.0±0.3 |
3450 |
5000 |
5360 |
|
T14*7*7.5 |
14.0±0.38 |
7.0±0.38 |
7.5±0.18 |
5180 |
7050 |
7300 |
|
T14*8*4 |
14.0±0.3 |
8.0±0.3 |
4.0±0.3 |
2200 |
3000 |
3150 |
|
T14*8*7 |
14.0±0.4 |
8.0±0.4 |
7.0±0.3 |
3850 |
5300 |
5500 |
|
T14*8*9 |
14.0±0.5 |
8.0±0.5 |
9.0±0.5 |
5180 |
7050 |
7350 |
|
T14*9*4 |
14±0.38 |
8.99±0.38 |
3.99±0.13 |
1750 |
2380 |
2500 |
|
T14*9*5 |
14.0±0.4 |
9.0±0.3 |
5.0±0.3 |
2200 |
3050 |
3148 |
|
T16*8*8 |
16.0±0.5 |
8.0±0.5 |
8.0±0.3 |
5650 |
7700 |
8000 |
|
T16*9*5 |
16.0±0.5 |
9.0±0.5 |
5.0±0.3 |
3300min |
3850 |
3000 |
|
T16*9*8 |
16.0±0.5 |
9.0±0.5 |
8.0±0.3 |
4300 |
6200 |
7100 |
|
T16*9.5*8 |
16.0±0.5 |
9.5±0.5 |
8.0±0.3 |
4100 |
5710 |
8150 |
|
T16*9.5*9 |
16.0±0.5 |
9.5±0.5 |
9.0±0.4 |
4650 |
6300 |
6550 |
|
T16*9.6*6.1 |
16.0±0.5 |
9.6±0.5 |
6.1±0.3 |
3100 |
4250 |
4400 |
|
T16*9.6*6.3 |
16.0±0.4 |
9.6±0.4 |
6.3±0.3 |
2520min |
4410 |
5470 |
|
T16*9.6*8 |
16.0±0.4 |
9.6±0.3 |
8.0±0.3 |
4150 |
5650 |
5850 |
|
T16*12*8 |
16.0±0.5 |
12.0±0.5 |
8.0±0.3 |
2510 |
2740min |
3680 |
|
T17*10*5 |
17.0±0.4 |
10.0±0.4 |
5.0±0.3 |
2600 |
3550 |
3650 |
|
T17*10*8 |
17.0±0.5 |
10.0±0.5 |
8.0±0.5 |
4150 |
6200 |
6300 |
|
T17*9.5*28.6 |
17.4±0.38 |
9.5±0.38 |
28.58±0.51 |
17300 |
23500 |
24400 |
|
T18*10*5 |
18.0±0.5 |
10.0±0.5 |
5.0±0.3 |
2900 |
3950 |
4100 |
|
T18*10*6 |
18.0±0.5 |
10.0±0.5 |
6.0±0.3 |
3500 |
4750 |
4950 |
|
T18*10*7 |
18.0±0.38 |
10.0±0.38 |
7.0±0.18 |
4050 |
5550 |
8000 |
|
T18*10*8 |
18.0±0.5 |
10.0±0.5 |
8.0±0.3 |
4800 |
6500 |
9140 |
|
T18*10*10 |
18.0±0.6 |
10.0±0.6 |
10.0±0.3 |
6280 |
8000 |
11430 |
|
T18*12*6 |
18.0±0.3 |
11.9±0.2 |
6.0±0.2 |
2400 |
3300 |
3400 |
|
T18*10.2*28.6 |
18.67±0.38 |
10.16±0.38 |
28.58±0.51 |
17300 |
23500 |
24500 |
|
T20*10*7 |
20.0±0.5 |
10.0±0.5 |
7.0±0.3 |
4800 |
6600 |
6800 |
|
T20*10*10 |
20.0±0.58 |
10.0±0.58 |
10.0±0.38 |
6850 |
9300 |
9650 |
|
T20*12*4.8 |
20.0±0.5 |
12.0±0.5 |
4.8±0.3 |
2400 |
3300 |
3450 |
|
T20*12*6 |
20.0±0.5 |
12.0±0.5 |
6.0±0.3 |
2950 |
4050 |
4200 |
|
T20*12*8 |
20.0±0.5 |
12.0±0.5 |
8.0±0.3 |
4000 |
5650 |
5850 |
|
T20*12*9 |
20.0±0.5 |
12.0±0.5 |
9.0±0.3 |
4450 |
6050 |
6250 |
|
T20*12*10 |
20.0±0.5 |
12.0±0.5 |
10.0±0.3 |
5500 |
7600 |
10000 |
|
T22*14*6 |
22.0±0.6 |
14.0±0.6 |
6.0±0.3 |
2680 |
3650 |
3800 |
|
T22*14*6.3 |
22.0±0.6 |
14.0±0.6 |
6.3±0.3 |
2800 |
3850 |
4000 |
|
T22*14*6.35 |
22.0±0.6 |
14.0±0.6 |
6.35±0.3 |
2850 |
3950 |
6000 |
|
T22*14*6.5 |
22.0±0.4 |
14.0±0.4 |
6.5±0.3 |
2950 |
4050 |
5555 |
|
T22*14*7 |
22.0±0.4 |
14.0±0.4 |
7.0±0.3 |
3100 |
4250 |
4400 |
|
T22*14*8 |
22.0±0.6 |
14.0±0.6 |
8.0±0.3 |
3560 |
4980 |
7110 |
|
T22*14*10 |
22.0±0.6 |
14.0±0.6 |
10.0±0.3 |
4440 |
6220 |
8890 |
|
T22*14*12 |
22.0±0.6 |
14.0±0.6 |
12.0±0.3 |
5330 |
4706min |
10670 |
|
T22*14*12.7 |
22.0±0.4 |
14.0±0.4 |
12.7±0.4 |
5700 |
7780 |
8050 |
|
T22*14*13 |
22.0±0.6 |
14.0±0.6 |
13.0±0.3 |
5150 |
7050 |
7300 |
|
T25*15*7 |
25.0±0.6 |
15.0±0.6 |
7.0±0.3 |
3500 |
4900 |
7000 |
|
T25*15*8 |
25.0±0.5 |
15.0±0.5 |
8.0±0.3 |
3400min |
5600 |
8000 |
|
T25*15*9 |
25.0±0.6 |
15.0±0.6 |
9.0±0.3 |
4450 |
6050 |
9000 |
|
T25*15*10 |
25.0±0.6 |
15.0±0.4 |
10.0±0.3 |
5000 |
7150 |
10000 |
|
T25*15*12 |
25.0±0.5 |
15.0±0.4 |
12.0±0.3 |
6000 |
8300 |
8580 |
|
T25*15*13 |
25.0±0.6 |
15.0±0.6 |
13.0±0.3 |
7150 |
9750 |
13000 |
|
T25*15*15 |
25.0±0.6 |
15.0±0.6 |
15.0±0.4 |
7750 |
10600 |
11000 |
|
T26*14.5*15 |
26.0±0.6 |
14.5±0.6 |
15.0±0.3 |
8880 |
11930 |
12500 |
|
T28*14*11 |
28.0±0.6 |
14.0±0.6 |
11.0±0.3 |
7330 |
10300 |
10700 |
|
T29*19*7.5 |
29.0±0.5 |
19.0±0.4 |
7.49±0.3 |
3120 |
4250 |
4400 |
|
T29*19*13.8 |
29.0±0.76 |
19.0±0.76 |
13.8±0.38 |
5800 |
7900 |
8200 |
|
T29*19*15 |
29.0±0.6 |
19.0±0.6 |
15.0±0.5 |
6300 |
8550 |
8880 |
|
T29*19*15.2 |
29.0±0.6 |
19.0±0.6 |
15.2±0.3 |
6330 |
8480 |
12894 |
|
T30*19*7.5 |
30.0±0.6 |
19.0±0.6 |
7.49±0.3 |
3350 |
4600 |
4750 |
|
T31*19*8 |
31.0±0.6 |
18.6min |
8.0±0.3 |
4300 |
5376 |
7680 |
|
T31*19*12 |
31.0±0.6 |
19.0±0.6 |
12.0±0.4 |
5650 |
7700 |
11520 |
|
T31*19*13 |
31.0±0.6 |
18.6min |
13.0±0.3 |
6240 |
8730 |
12480 |
|
T31*19*15 |
31.0±0.6 |
19.0±0.6 |
15.0±0.3 |
6900 |
9400 |
9750 |
|
T31*19*16 |
31.0±0.6 |
18.6min |
16.0±0.4 |
7680 |
10752 |
15360 |
|
T31*20*15 |
31.0±0.6 |
20.0±0.6 |
15.0±0.4 |
6480 |
9060 |
12940 |
|
T36*23*10 |
35.99±0.6 |
23.0±0.4 |
10.0±0.4 |
4450 |
6050 |
6280 |
|
T36*23*15 |
36.0±0.6 |
22.5min |
15.0±0.4 |
6600 |
7700 |
13400 |
|
T38*19*13 |
38.0±0.7 |
19.0±0.7 |
13.0±0.5 |
9530 |
12130 |
13950 |
|
T38*19*14 |
38.0±0.4 |
19.0+0.5 |
14.0±0.4 |
10300 |
14000 |
17000 |
|
T38*22*13 |
38.0±0.7 |
22.0±0.7 |
13.0±0.5 |
6930 |
9710 |
10000 |
|
T42*26*13 |
42.0±0.7 |
26.0±0.7 |
13.0±0.5 |
6200 |
8560 |
8800 |
|
T42*26*16 |
42.0±0.7 |
26.0±0.7 |
16.0±0.5 |
7550 |
10300 |
11765 |
|
T50*25*20 |
50.0+0/-1.2 |
25.0+0.6/-0 |
20.0+1.2/-0 |
13330 |
18660 |
21460 |
|
T50*30*20 |
50±0.8 |
30.0±0.8 |
20.0±0.5 |
10300 |
14000 |
14600 |
|
T50*30*30 |
50.0±0.8 |
30.0±0.8 |
30.0±0.5 |
15500 |
21000 |
22000 |
|
T50*35*16 |
50.0±0.8 |
35.0±0.7 |
16.0±0.4 |
5650 |
7700 |
11835 |
|
T50*35*20 |
50.0±0.8 |
35.0±0.8 |
20.0±0.5 |
7050 |
9880 |
14110 |
|
T56*32*15 |
56.0±0.8 |
32.0±0.8 |
15.0±0.5 |
9820 |
11300 |
11700 |
|
T56*32*18 |
56.0±0.8 |
32.0±0.8 |
18.0±0.5 |
10000 |
13700 |
19640 |
|
T65*38*20 |
65.0±1.5 |
38.0±0.8 |
20.0±0.5 |
10700 |
14600 |
15200 |
|
|
